BỘ 328 ỐNG CO NHIỆT ĐỦ MÀU ( Hộp )

Description

Description
Designed for protecting the point of connection from any kind of elements.
The meltable sealant also provides a barrier to the point from corrosion, resistance and moisture.
Shrink temperature is start at 70℃, shrunk completed at 110℃.

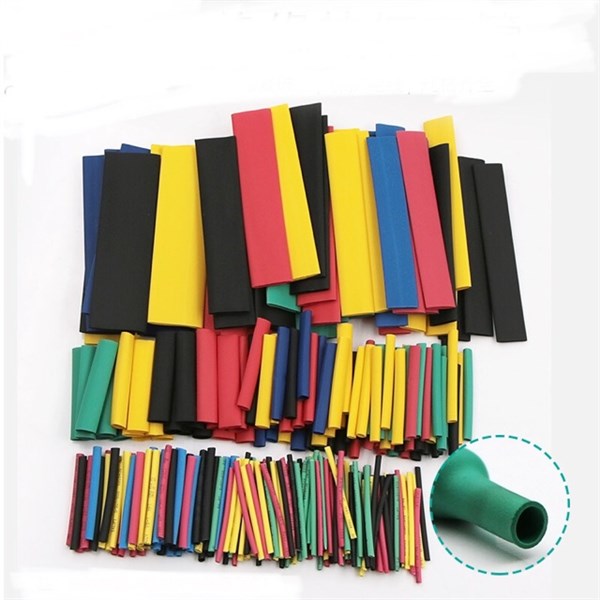

Includes 328pcs heat shrink tubing, suitable for various needs.
Can be used to protect bundled wires and metal tubes.
Flexible after shrinked, shrink ratio is 2:1.
Specifications:
Color: black, red, green, yellow, blue.
Size: 1*40mm, 2*40mm, 3*40mm, 4*40mm, 6*40mm, 8*80mm, 10*80mm, 14*80mm.
Material: polyolefin.
Shrinkage Ratio: 2:1(will maximum shrink to 1/2 its supplied diameter).
Operating Temperature: -55°C to +125°C.
Minimum Shrinkage Temp: +70°C.
Full Shrinkage Temp: +110°C maximum.
Tensile Strength: 10.4 Mpa.
Dielectric Strength:15 kV/mm.
Flammability: Flame Retardant.
Approvals: UL Approved.

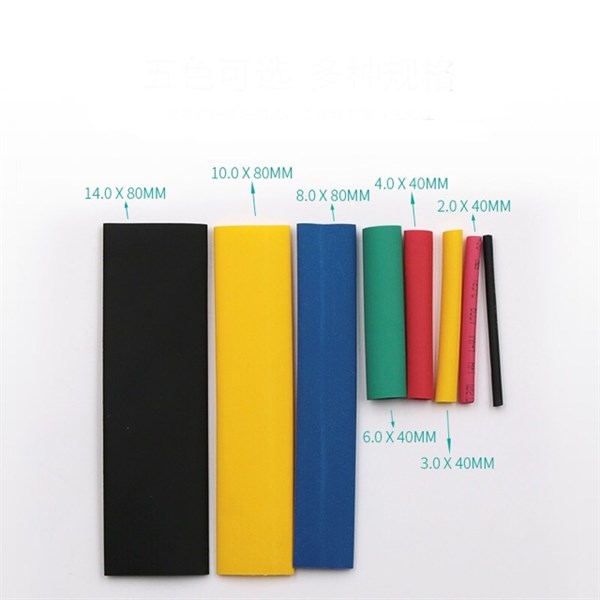

(Quantity x Supplied Internal Diameter x Single Length)
120pcs 1.0 x 40mm (Yellow,Black,Red,Green)
60pcs 2.0 x 40mm (Yellow,Black,Red,Blue)
32pcs 3.0 x 40mm (Yellow,Black,Red,Green)
32pcs 4.0 x 40mm (Yellow,Black,Red,Blue)
32pcs 6.0 x 40mm (Yellow,Black,Red,Green)
20pcs 8.0 x 80mm (Yellow,Black,Red,Blue)
16pcs 10.0 x 80mm (Yellow,Black,Red,Green)
16pcs 14.0 x 80mm (Yellow,Black,Red,Blue)
Package included:
328pcs * heat shrink tubes.
